WPL/WPF series Precision Planetary Gear Boxes

▋Core characteristics of PL/PF WPL/WPF
① Structural characteristics

All gear rings of reducer output planetary carrier are designed with a split structure, all parameters of reducer are excellent, the product adopts the same machining technique and high-precision machining equipment as that of high-end products, achieving high-cost performance. The gear ring, planetary carrier and input shaft of reducer are made of high-quality 40 Cr structural steel with the hot forging technique to achieve higher material density as well as higher rigidity and toughness than cast box and round steel.

② Characteristics of gear

The gear is the genuine spur gear with straight flank. The gear is made of high-quality 20 CrMnTi alloy steel with carburizing-gear grinding technique. Its hardness can be up to HRC62. Compared with gear made of ordinary 40 Cr and 38 CrMnTi steel with only surface nitrogen treatment, this type of gear is characterized with higher hardness, rigidity, toughness and abrasion resistance performance. The tooth form and tooth direction of gear are corrected and reconditioned respectively with the design analysis technology of 3D Simulation to reduce the engagement noise and extend the service life of gear train.

③ Application characteristics

All parameters of the product are excellent. The product can bear certain radial and axial loads and makes excellent performance in cases where there are low and medium-precision requirements.

Rotio:i=3:1~10,000:1
Backlash:< 5 arcmin

Output torque:~16,000N.m

Frame size:PS70~PS400

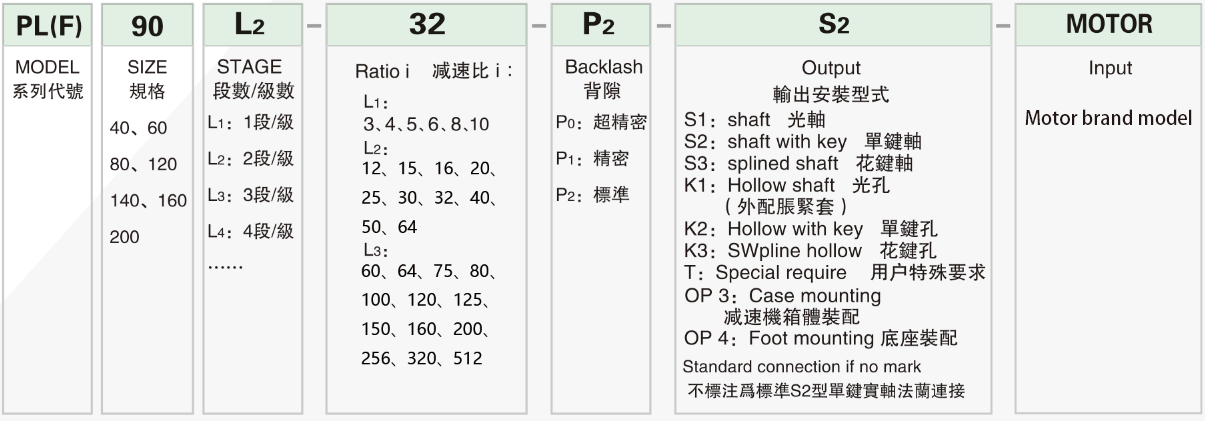

▋Ordering code
